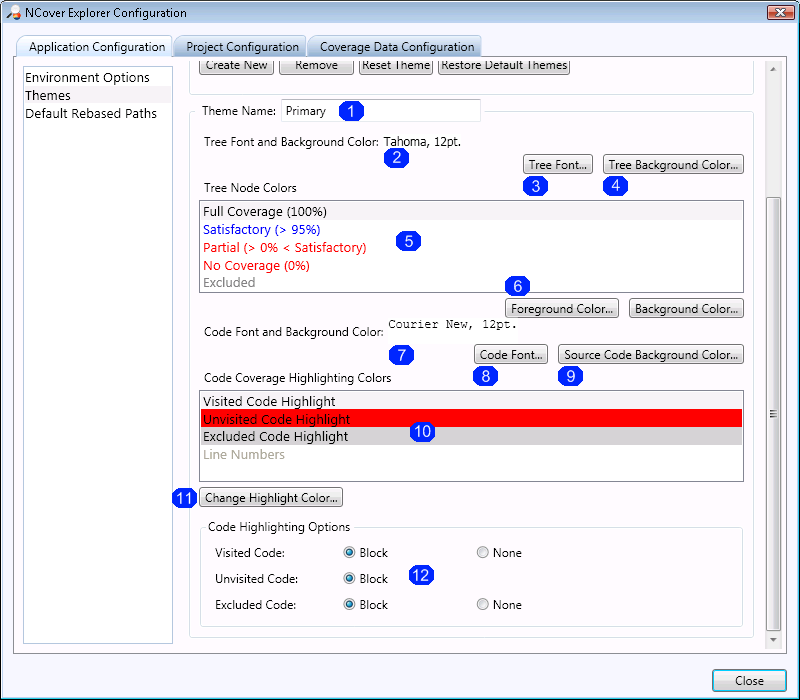

  1. You can change the name of the theme here. A theme's name must be unique.
  2. The font, font size, and background color of the Treeview are displayed here. They can be changed with the buttons above 3 and 4.
  3. This button lets you choose the font and font size of the text used for the nodes in the Treeview panel.
  4. This button lets you choose the background color of the Treeview panel
  5. This panel lists all of the coverage states that a Treeview node can be in, along with the forground and background colors that currently distinguish each state from the other states.
  6. Using the buttons under 6, you can change which foreground and background colors are used to indicate the coverage state of a Treeview node.
  7. The font, font size, and background color used in the source code panel are displayed here.
  8. This button lets you choose the font and font size of the font used to display source code in the source code panel.
  9. This button lets you choose the background color of the source code panel.
  10. This listbox lists all the available colors and highlights available in the source code panel.
  11. This buttons lets you change the color for the selected item in the listbox above.
  12. These radiobuttons let you decide whether you want visited/unvisited code to be highlighted at all. Unvisited code will always be highlighted.
